Pump Drives

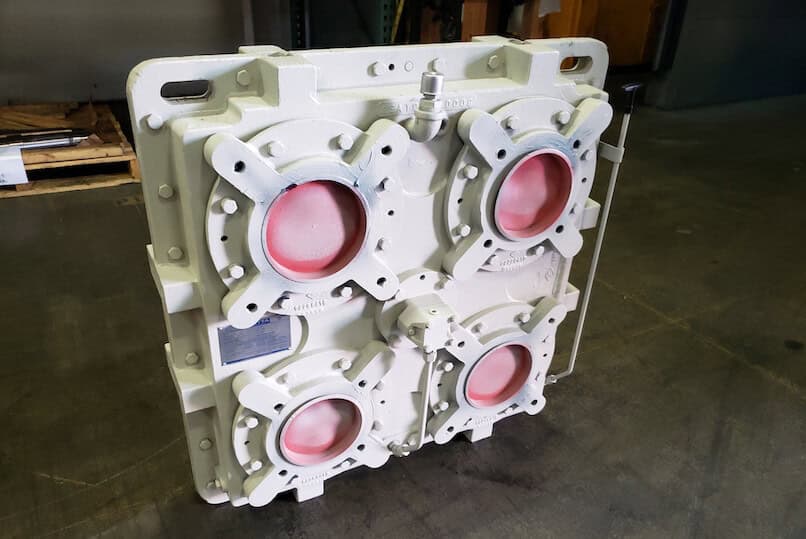

Heavy-Duty Pump Drives Engineered for Maximum Capacity and Reliability

You can count on Cotta Pump Drives to provide years of dependable and efficient performance in the harshest, most demanding conditions.

Our hardworking, high-capacity pump drives are constructed with top quality materials and precision machining to offer you the competitive edge you need to meet your most demanding pumping challenges. They provide up to 3000 HP, and include extra-wide pump spacing to ensure easy maintenance. Our engineers here at Cotta have been designing heavy-duty pump drives for many decades, so we can offer hundreds of proprietary designs to best match your power equipment requirements, including:

  • special-purpose units with 8 or more stations
  • through shafts or PTO shafts
  • engine mounting or independent mounting
  • SAE, DIN or custom outputs
  • increasing or decreasing ratios
  • engine or anti-engine rotations
  • power splitter or power combiner configurations
POPULAR PUMP DRIVES HEAVY DUTY PUMP DRIVES CATALOG PUMP DRIVES SPEC SHEETS INDSUTRIAL GEARBOX QUOTE REQUEST FORM

Popular Pump Drives:

Some of our most popular pump drives are shown below, and listed on this Tabulation Chart, but please contact Cotta for your specific needs.

PD420

  • POWER: 1500 HP max input 900 HP max per output
  • OUTPUT SPEED:2200 / 2600 rpm
  • MAX TORQUE: Input: 3600 lb-ft Per output station: 2150 lb-ft
  • RATIOS: Overspeed: 1.177, 1.11, 1.015
  • ROTATION: Outputs rotate opposite to input.
  • OUTPUT OPTIONS: Various SAE and ISO pump pads. PTO shafts, disconnects, clutches, custom.
  • MOUNTING OPTIONS: SAE flange size #0, #1. Independent
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump furnished, heat exchanger required.
  • APPROXIMATE WEIGHT: 1500 lbs.
DOWNLOAD PDF

PD430

  • POWER: 1500 HP max input 900 HP max per output
  • MAX INPUT / OUTPUT SPEED : 2200 / 2600 rpm
  • MAX TORQUE: Input: 3600 lb-ft Per output station: 2150 lb-ft
  • RATIOS: Overspeed: 1.177, 1.11, 1.015
  • ROTATION: Outputs rotate opposite to input.
  • OUTPUT OPTIONS: Various SAE and ISO pump pads. PTO shafts, disconnects, clutches, custom.
  • MOUNTING OPTIONS: SAE flange size #0, #1. Independent.
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump furnished, heat exchanger required.
  • APPROXIMATE WEIGHT: 1750 lbs.
DOWNLOAD PDF

PD440

  • POWER: 1500 HP max input 900 HP max per output
  • MAX INPUT / OUTPUT SPEED : 2200 / 2600 rpm
  • MAX TORQUE: Input: 3600 lb-ft Per output station: 2150 lb-ft
  • RATIOS: Overspeed: 1.177, 1.11, 1.015
  • ROTATION: Outputs rotate opposite to input.
  • OUTPUT OPTIONS: Various SAE and ISO pump pads. PTO shafts, disconnects, clutches, custom.
  • MOUNTING OPTIONS: SAE flange size #0, #1. Independent.
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump furnished, heat exchanger required.
  • APPROXIMATE WEIGHT: 2100 lbs.
DOWNLOAD PDF

PD450

  • POWER: 500 HP
  • MAX INPUT / OUTPUT SPEED : 2100 rpm
  • MAX TORQUE: Input: 1250 lb-ft Pump pad: 500 lb-ft. Through shaft: 1000 lb-ft
  • RATIOS: 1:1, 1.18:1 reduction or increase
  • MOUNTING OPTIONS: SAE flange size #0, #1. Independent.
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • OUTPUT OPTIONS: Various SAE and ISO pump pads. PTO shafts, disconnects, clutches, custom. SAE #1 flange
  • ROTATION: Outputs rotate same direction as input.
  • LUBRICATION: Internal reservoir.
  • APPROXIMATE WEIGHT: 1450 lbs.
DOWNLOAD PDF

PD2225

  • POWER: 1350 HP max input 270 HP max per output
  • MAX INPUT / OUTPUT SPEED :2100 RPM
  • MAX TORQUE: Input: 3100 lb-ft Through shaft: 1500 lb-ft
  • RATIOS: 1:1
  • ROTATION: Outputs rotate same direction as input
  • OUTPUT OPTIONS: Various SAE and ISO pump pads. PTO shafts, disconnects, clutches, custom.
  • MOUNTING OPTIONS: SAE flange sizes #00, #0, #1. Independent
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump and heat exchanger required. Option for customer supplied sump heater.
  • APPROXIMATE WEIGHT: 2000 lbs.
DOWNLOAD PDF

PD2255

  • POWER: Input: 1000 HP Output: 950 HP max @ any output
  • MAX INPUT SPEED: 2200 RPM
  • MAX INPUT TORQUE: 2500 lb-ft.
  • ROTATION: Output pads rotate opposite input
  • RATIO RANGE:
    Reduction: 1.143
    Overspeed: 1.015, 1.177, 1.213
  • OUTPUT OPTIONS: See spec drawing for listing of pad kits
  • MOUNTING OPTIONS: SAE flange sizes #0, #1. Independent
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump included. Heat exchanger required
  • APPROXIMATE WEIGHT: 1400 lbs.
DOWNLOAD PDF

PD2263

  • MAX POWER: Input: 3000 HP Output: 825 HP at any output
  • MAX INPUT SPEED: 2100 RPM
  • MAX TORQUE: 10,700 lb-ft. input
  • ROTATION: Output pads rotate opposite input
  • RATIO RANGE: 1:014 reduction
  • OUTPUT OPTIONS: SAE, ISO, and custom pump pads. Custom shafts, disconnects, and clutches.
  • MOUNTING OPTIONS: SAE flange size #00. Independent.
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom.
  • LUBRICATION: Internal reservoir. Lube pump and filter included. Heat exchanger required
  • APPROXIMATE WEIGHT: 6100 lbs.
DOWNLOAD PDF

PD2266

  • MAX POWER:
    Input: 2300 HP
    Output: Up to 1800 HP at any output
  • MAX INPUT SPEED: 2000 RPM
  • MAX TORQUE:
    Input: 8600 lb-ft.
    Output: Up to 5300 lb-ft at any output
  • ROTATION: 1:1
    1.17:1, 1.29:1 reduction
  • RATIO RANGE: 1:014 reduction
  • OUTPUT OPTIONS: SAE, ISO, and custom pump pads. Custom shafts, disconnects, and clutches.
  • MOUNTING OPTIONS: SAE flange size #00 or #00. Remote mount, shaft coupling connected.
  • FLYWHEEL COUPLING OPTIONS: Overcenter clutches, torsional couplings, drive plates, custom
  • LUBRICATION: Internal reservoir. Lube pump and filter included. Heat exchanger required
  • APPROXIMATE WEIGHT: 3000 lbs.
DOWNLOAD PDF
Industrial Gearbox Quote Request Form

Cotta. Your gearbox of choice.

Experience the Difference of Precision-Engineered Pump Drives from Cotta. Contact us today to learn more.

Choose Cotta for heavy-duty pump drives engineered for reliability and performance in even the most demanding applications. With a range of sizes and styles to choose from, we can tailor a pump drive to fit your specific needs. Contact us by calling 608.368.5600, email us at sales@cotta.com, or click here to get started.
